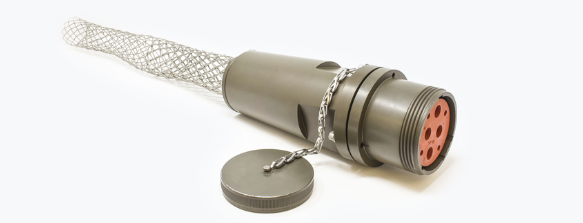

Amphenol L 22992 类大功率、重型电连接器专为大电流电气负载而设计，是市面上最大的圆柱形 Amphenol 电源连接器。这些加固型连接器仅在 MIL-DTL-22992 标准规定的特定配置中提供，适用于军事或工业级应用。这种严格的配置控制可确保电路的正确互连，以实现最大的安全性和可靠性。
重电气负载：电流范围为 40 至 200 安培
直流或单/三相，60/400赫兹交流电
自动接地以确保安全
符合 MIL-DTL-22992 认证
耐热、潮湿、振动、高冲击和浸泡等操作环境 - 见“技术信息”中的图表
双短截线耦合螺纹，连接速度更快;无交叉螺纹，易于清洁
左手附件螺纹可最大限度地减少电缆扭曲、断线、意外连接器拆卸
垫圈或 O 形圈位于适当的表面，可实现完美的耐候性连接
| Part Number | Industry Type | MS Number | Shell Finish | Shell Size | Alternate Master Key/Keyway Position | Insert Arrangement | Contact Type | Alternate Keying Position |
|---|---|---|---|---|---|---|---|---|
| MS90555C28412SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 28 40 amperes - AC | 4 120 Degrees | 12 28-12 IPCEA, type G, round, four #8 conductors | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C28413SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 28 40 amperes - AC | 4 120 Degrees | 13 28-13 CO-04 HDF, (4-6-4/12R) 1090 per MIL-DTL-3432 | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C28512SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 28 40 amperes - AC | 5 135 Degrees | 12 28-12 IPCEA, type G, round, four #8 conductors | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C28513SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 28 40 amperes - AC | 5 135 Degrees | 13 28-13 CO-04 HDF, (4-6-4/12R) 1090 per MIL-DTL-3432 | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C28612SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 28 40 amperes - AC | 6 150 Degrees | 12 28-12 IPCEA, type G, round, four #8 conductors | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C28613SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 28 40 amperes - AC | 6 150 Degrees | 13 28-13 CO-04 HDF, (4-6-4/12R) 1090 per MIL-DTL-3432 | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C32404SX | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 4 120 Degrees | 04 32-04 IPCEA, type G, round, two #6 conductors | S Socket | X 90 Degrees Insert Rotation |
| MS90555C32405SX | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 4 120 Degrees | 05 32-05 CO-02 HDF, (2/4-2/8R) 1100 per MIL-DTL-3432 | S Socket | X 90 Degrees Insert Rotation |
| MS90555C32412SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 4 120 Degrees | 12 32-12 IPCEA, type G, round, four #6 conductors | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C32413SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 4 120 Degrees | 13 32-13 CO-04 HDF, (4/4-4/12R) 1290 per MIL-DTL-3432 | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C32504SX | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 5 135 Degrees | 04 32-04 IPCEA, type G, round, two #6 conductors | S Socket | X 90 Degrees Insert Rotation |
| MS90555C32505SX | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 5 135 Degrees | 05 32-05 CO-02 HDF, (2/4-2/8R) 1100 per MIL-DTL-3432 | S Socket | X 90 Degrees Insert Rotation |
| MS90555C32512SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 5 135 Degrees | 12 32-12 IPCEA, type G, round, four #6 conductors | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C32513SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 5 135 Degrees | 13 32-13 CO-04 HDF, (4/4-4/12R) 1290 per MIL-DTL-3432 | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C32604SX | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 6 150 Degrees | 04 32-04 IPCEA, type G, round, two #6 conductors | S Socket | X 90 Degrees Insert Rotation |
| MS90555C32605SX | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 6 150 Degrees | 05 32-05 CO-02 HDF, (2/4-2/8R) 1100 per MIL-DTL-3432 | S Socket | X 90 Degrees Insert Rotation |
| MS90555C32612SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 6 150 Degrees | 12 32-12 IPCEA, type G, round, four #6 conductors | S Socket | Y 180 Degrees Insert Rotation |
| MS90555C32613SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | C Conductive for AC circuits | 32 60 amperes - AC | 6 150 Degrees | 13 32-13 CO-04 HDF, (4/4-4/12R) 1290 per MIL-DTL-3432 | S Socket | Y 180 Degrees Insert Rotation |
| MS90555N28N12SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 28 40 amperes - DC | N Normal 105 Degrees | 12 28-12 IPCEA, type G, round, four #8 conductors | S Socket | Y 180 Degrees Insert Rotation |
| MS90555N28N13SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 28 40 amperes - DC | N Normal 105 Degrees | 13 28-13 CO-04 HDF, (4-6-4/12R) 1090 per MIL-DTL-3432 | S Socket | Y 180 Degrees Insert Rotation |
| MS90555N32N04SX | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 32 60 amperes - DC | N Normal 105 Degrees | 04 32-04 IPCEA, type G, round, two #6 conductors | S Socket | X 90 Degrees Insert Rotation |
| MS90555N32N05SX | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 32 60 amperes - DC | N Normal 105 Degrees | 05 32-05 CO-02 HDF, (2/4-2/8R) 1100 per MIL-DTL-3432 | S Socket | X 90 Degrees Insert Rotation |
| MS90555N32N12SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 32 60 amperes - DC | N Normal 105 Degrees | 12 32-12 IPCEA, type G, round, four #6 conductors | S Socket | Y 180 Degrees Insert Rotation |
| MS90555N32N13SY | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 32 60 amperes - DC | N Normal 105 Degrees | 13 32-13 CO-04 HDF, (4/4-4/12R) 1290 per MIL-DTL-3432 | S Socket | Y 180 Degrees Insert Rotation |
| MS90555N44N02S | Military | MS90555 Military - Wall Mount Receptacle (Power Source) | N Non-conductive for DC circuits | 44 100 amperes - DC | N Normal 105 Degrees | 02 44-02 IPCEA, type W, round, two #2 conductors | S Socket |
