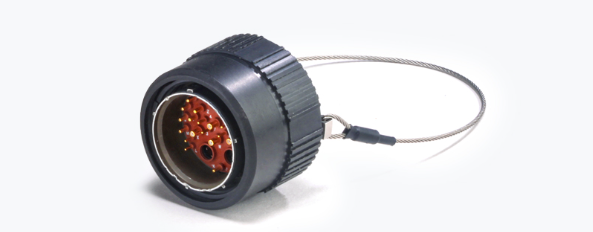

福川电子2M801通常被认为是一个传统系列。它的后继产品 2M805 系列有许多重要的改进，包括三起点螺纹（减少完全配接连接器所需的匝数）和 EMI 频段（增加壳与壳之间的导电性并大大改善信号屏蔽）。如果您希望保持与现有技术或电缆的兼容性或互操作性，则应选择 2M801。
重型双启动 ACME 螺纹
2M 系列中最耐用
多达 2,000 次插拔
两种插头类型：棘轮和防去耦
提供高速选项
| Part Number | Series | Shell Style | Service Class | Shell Size Insert Arrangement | Contacts | Keying |
|---|---|---|---|---|---|---|
| 2M801-007-16C5-3AA | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | A A (A 150, B 210) |
| 2M801-007-16C5-3AB | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | B B (A 75, B 210) |
| 2M801-007-16C5-3AC | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | C C (A 95, B 230) |
| 2M801-007-16C5-3AD | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | D D (A 140, B 275) |
| 2M801-007-16C5-3AE | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | E E (A 75, B 275) |
| 2M801-007-16C5-3AF | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | F F (A 95, B 210) |
| 2M801-007-16C5-3BA | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | A A (A 150, B 210) |
| 2M801-007-16C5-3BB | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | B B (A 75, B 210) |
| 2M801-007-16C5-3BC | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | C C (A 95, B 230) |
| 2M801-007-16C5-3BD | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | D D (A 140, B 275) |
| 2M801-007-16C5-3BE | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | E E (A 75, B 275) |
| 2M801-007-16C5-3BF | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | F F (A 95, B 210) |
| 2M801-007-16C5-3PA | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | A A (A 150, B 210) |
| 2M801-007-16C5-3PB | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | B B (A 75, B 210) |
| 2M801-007-16C5-3PC | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | C C (A 95, B 230) |
| 2M801-007-16C5-3PD | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | D D (A 140, B 275) |
| 2M801-007-16C5-3PE | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | E E (A 75, B 275) |
| 2M801-007-16C5-3PF | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | F F (A 95, B 210) |
| 2M801-007-16C5-3SA | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | A A (A 150, B 210) |
| 2M801-007-16C5-3SB | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | B B (A 75, B 210) |
| 2M801-007-16C5-3SC | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | C C (A 95, B 230) |
| 2M801-007-16C5-3SD | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | D D (A 140, B 275) |
| 2M801-007-16C5-3SE | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | E E (A 75, B 275) |
| 2M801-007-16C5-3SF | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | F F (A 95, B 210) |
| 2M801-007-16M5-3PA | 2M801-007 2M801-007: Plug with Integral Backshell | -16 -16: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | P P: Pin | A A (A 150, B 210) |
