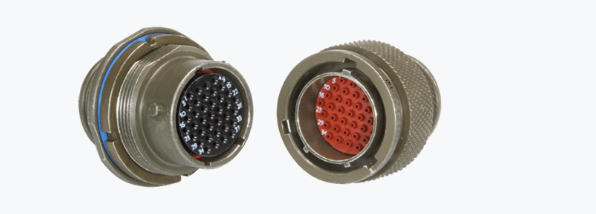

2M803微型圆形连接器非常轻;其快速、可靠的卡口耦合使其成为需要频繁断开的轻型应用的理想选择。它们的微型尺寸和易于解耦也使其成为具有难以触及面板的客户的首选连接器。与其他 2M 连接器不同，2M803 连接器的额定浸入式设计不高，建议用于不会长时间暴露在元件中的通用连接。
卡口联轴器
2M 系列中最快的转弯配接
1,000 次插拔
2M 系列中最轻的
| Part Number | Series | Shell Style | Service Class | Shell Size Insert Arrangement | Contacts | Keying |
|---|---|---|---|---|---|---|
| 2M803-001-06C5-3AN | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | N N (A 150, B 210) |
| 2M803-001-06C5-3AX | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | X X (A 75, B 210) |
| 2M803-001-06C5-3AY | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | Y Y (A 95, B 230) |
| 2M803-001-06C5-3AZ | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | A A: Pin-Less Contacts | Z Z (A 140, B 275) |
| 2M803-001-06C5-3BN | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | N N (A 150, B 210) |
| 2M803-001-06C5-3BX | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | X X (A 75, B 210) |
| 2M803-001-06C5-3BY | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | Y Y (A 95, B 230) |
| 2M803-001-06C5-3BZ | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | B B: Socket-Less Contacts | Z Z (A 140, B 275) |
| 2M803-001-06C5-3PN | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | N N (A 150, B 210) |
| 2M803-001-06C5-3PX | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | X X (A 75, B 210) |
| 2M803-001-06C5-3PY | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | Y Y (A 95, B 230) |
| 2M803-001-06C5-3PZ | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | P P: Pin | Z Z (A 140, B 275) |
| 2M803-001-06C5-3SN | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | N N (A 150, B 210) |
| 2M803-001-06C5-3SX | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | X X (A 75, B 210) |
| 2M803-001-06C5-3SY | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | Y Y (A 95, B 230) |
| 2M803-001-06C5-3SZ | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | C C: Anodized (Non-conductive) -RoHS | 5-3 | S S: Socket | Z Z (A 140, B 275) |
| 2M803-001-06M5-3AN | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | A A: Pin-Less Contacts | N N (A 150, B 210) |
| 2M803-001-06M5-3PN | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | P P: Pin | N N (A 150, B 210) |
| 2M803-001-06M5-3PX | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | P P: Pin | X X (A 75, B 210) |
| 2M803-001-06M5-3PY | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | P P: Pin | Y Y (A 95, B 230) |
| 2M803-001-06M5-3PZ | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | P P: Pin | Z Z (A 140, B 275) |
| 2M803-001-06M5-3SN | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | S S: Socket | N N (A 150, B 210) |
| 2M803-001-06M5-3SX | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | S S: Socket | X X (A 75, B 210) |
| 2M803-001-06M5-3SY | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | S S: Socket | Y Y (A 95, B 230) |
| 2M803-001-06M5-3SZ | 2M803-001 2M803-001: Plug with Integral Backshell | -06 -06Z: Anti-Decoupling | M M: Electroless Nickel -RoHS | 5-3 | S S: Socket | Z Z (A 140, B 275) |
