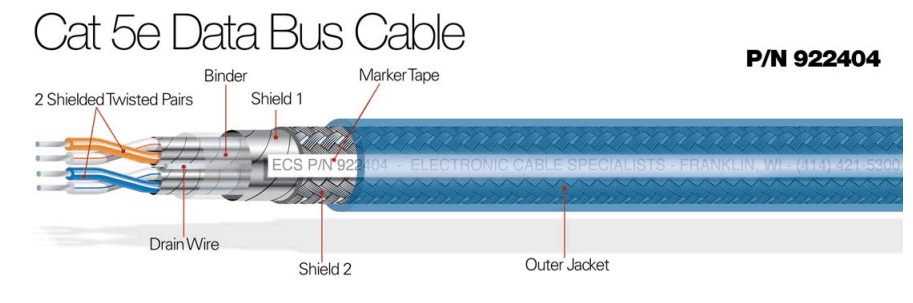

Twisted Pairs:

 Conductors: 24 AWG silver plated copper alloy

 Insulation: High temperature flouropolymer

 Shield: Aluminum/Polyester tape

Color Code:

 Pair 1: White/Blue, Blue/White

 Pair 2: White/Orange, Orange/White

Overall Cable: Drain Wire: 24 AWG silver plated copper alloy

Binder: Polyester tape

Shield 1: Aluminum/Polyester tape

Shield 2: 38 AWG silver coated copper braid

Jacket: Blue high temperature flouropolymer

(laser markable)

Physical Characteristics Outer Diameter: 0.240 inches nominal

Bend Radius: 1.5 inches nominal

Weight: 3.75 lbs/100 feet nominal

Temperature Range: -55° to +150° C

Skydrol Resistant: Yes

Electrical Characteristics (each pair) Impedance: 100 Ohms nominal

Capacitance: 15.0 pF/ft maximum

Velocity of Propogation: 78% nominal

Attenuation: 10 MHz 2.38 dB/100 meters

(nominal)    100 MHz 7.6 dB/100 meters

Applications

LAN, 10/100 Base
