应用：高温机身和航空电子线束应用

产品描述：镍包高强度铜合金导体

交联改性四氟乙烯绝缘（双壁），按照mil-std-681颜色编码

额定温度：200°额定电压：600伏

APPLICATIONS:

High temperature airframe and avionics open harness applications

CHARACTERISTICS:

PRODUCT DESCRIPTION:

Stranded nickel coated high strength copper alloy conductor

Cross-linked modified ETFE insulation (dual wall), color coded in accordance with MIL-STD-681

TEMPERATURE RATING:

200°C

VOLTAGE RATING:

600 volts

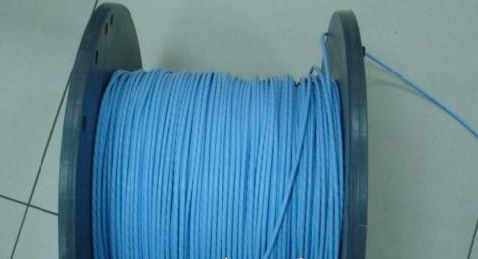

MIL-W-22759/42 (M22759/42) | SAE AS22759/42

finished Wire

Mil-Spec #           AWG   Stranding  Min O.D. (in)  MaxO.D. (in)   Nom.Lbs/Mft

M22759/42-26-*   26      19/38       0.038           0.042             1.7

M22759/42-24-*   24      19/36       0.043           0.047             2.3

M22759/42-22-*   22      19/34       0.048           0.052             3.3

M22759/42-20-*   20      19/32       0.056           0.060             4.8

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/42-20-9; white with orange stripe -

M22759/42-20-93.
