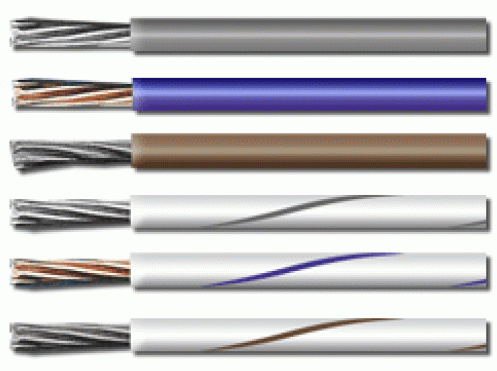

mil-w-22759/16线（m22759/16线）
SAEas22759/16线
军用规格导线
m22759/16芯导线：
导体：镀锡铜绞线
绝缘材料：乙烯-四氟乙烯共聚物（ETFE）
m22759/16线额定值：
电压：600伏
温度：150°C
m22759/16线识别：
绝缘的绿色或白色印刷
军事部分包括AWG
PART NUMBER AWG Conductor Stranding Approx LBS/MFT Nom. Dia. of Cond. min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
m22759/16-24-0 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-1 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-2 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-3 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-4 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-5 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-6 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-7 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-8 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-9 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-22-0 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-1 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-2 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-3 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-4 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-5 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-6 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-7 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-8 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-9 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-20-0 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-1 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-2 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-3 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-4 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-5 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-6 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-7 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-8 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-9 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-18-0 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-1 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-2 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-3 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-4 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-5 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-6 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-7 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-8 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-9 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-16-0 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
