mil-w-22759 | SAE as22759/14
mil-w-22759/14线（m22759/14线）
SAE as22729线
军用规格线缆

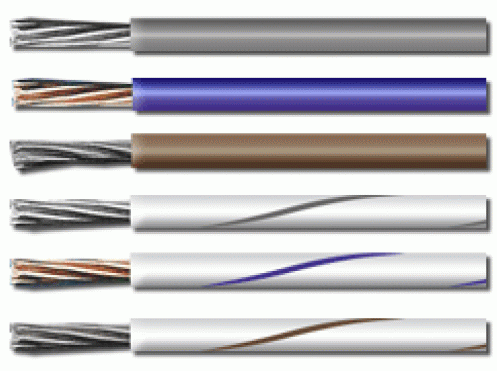

m22759/14线缆结构：
导体：镀锡铜
绝缘：氟化乙烯丙烯
护套：聚偏氟乙烯
m22759 / 14线额定值：
额定电压：600伏
温度等级：135°
PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
m22759/14-26-0 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-26-1 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-26-2 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-26-3 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-26-4 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-26-5 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-26-6 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-26-7 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-26-8 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-26-9 26 19/38 1.8 0.035 0.039 Tin Coated Copper 135°C 600
m22759/14-24-0 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-24-1 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-24-2 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-24-3 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-24-4 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-24-5 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-24-6 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-24-7 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-24-8 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-24-9 24 19/36 2.47 0.04 0.044 Tin Coated Copper 135°C 600
m22759/14-22-0 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-22-1 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-22-2 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-22-3 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-22-4 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-22-5 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-22-6 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-22-7 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-22-8 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-22-9 22 19/34 3.53 0.045 0.051 Tin Coated Copper 135°C 600
m22759/14-20-0 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-20-1 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-20-2 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-20-3 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-20-4 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-20-5 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-20-6 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-20-7 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-20-8 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-20-9 20 19/32 5.13 0.053 0.059 Tin Coated Copper 135°C 600
m22759/14-18-0 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-18-1 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-18-2 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-18-3 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-18-4 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-18-5 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-18-6 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-18-7 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-18-8 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-18-9 18 19/30 7.64 0.063 0.069 Tin Coated Copper 135°C 600
m22759/14-16-0 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-16-1 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-16-2 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-16-3 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-16-4 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-16-5 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-16-6 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-16-7 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-16-8 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-16-9 16 19/29 9.34 0.067 0.075 Tin Coated Copper 135°C 600
m22759/14-14-0 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-14-1 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-14-2 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-14-3 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-14-4 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-14-5 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-14-6 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-14-7 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-14-8 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-14-9 14 19/27 14.4 0.083 0.091 Tin Coated Copper 135°C 600
m22759/14-12-0 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
m22759/14-12-1 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
m22759/14-12-2 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
m22759/14-12-3 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
m22759/14-12-4 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
m22759/14-12-5 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
m22759/14-12-6 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
m22759/14-12-7 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
m22759/14-12-8 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
m22759/14-12-9 12 37/28 22.3 0.103 0.111 Tin Coated Copper 135°C 600
